8720017998757
Tormino | SKU:
8720017998757
€7,99
Incl. VAT
Jedność
8720017998757 Powłonięty i jest wysyłany, gdy tylko wróci do magazynu.
Out of stock
Currently unavailable
Secure payment
Opis
• Brand: Allteq • Color: white • Connector 1: RJ45 male • Connector 2: RJ45 male • Connector type: straight • Cable type: Cat 5e • Conductor material: CCA • Conductor gauge: AWG 28/7 • Number of conductors: 8 • Jacket: PVC • Diameter: 4.5 millimeters • Strain relief: Yes • Halogen-free: No • Maximum bandwidth: 100 MHz • Maximum data rate: 1 Gbit per second • Warranty: 5 years

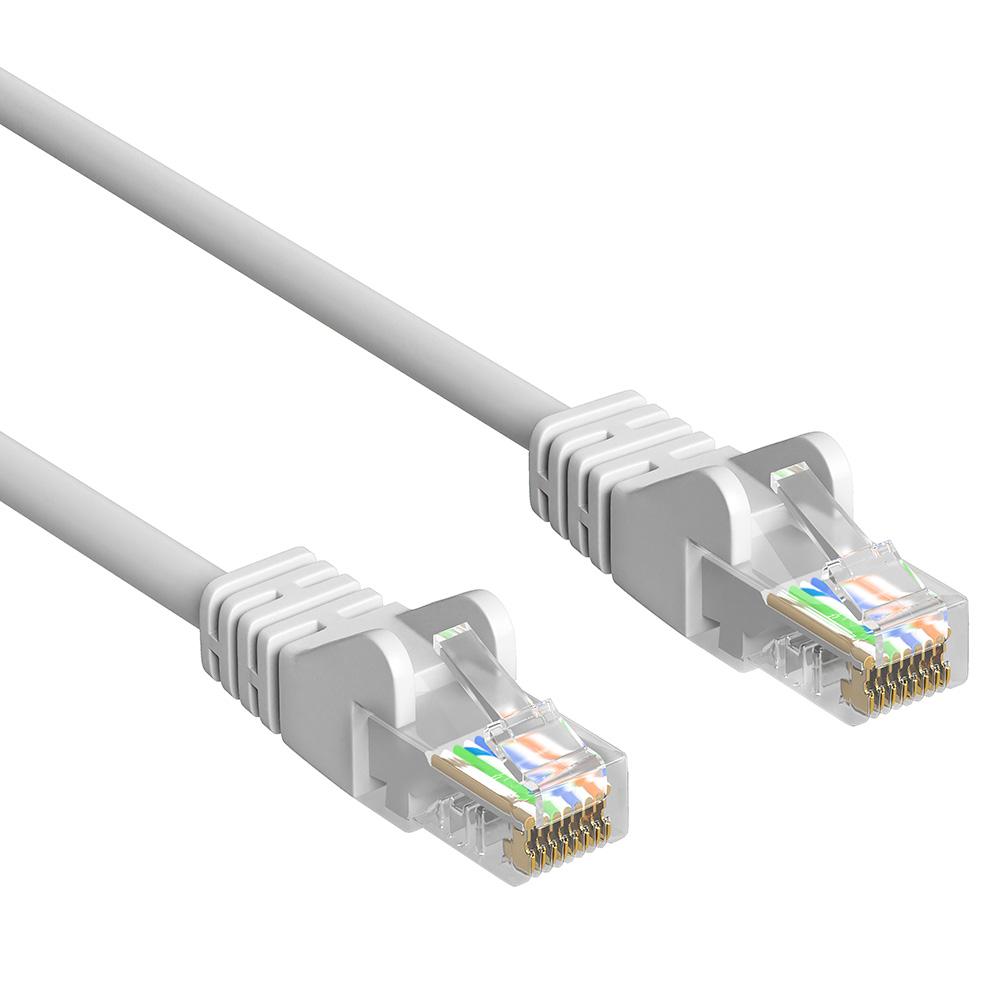

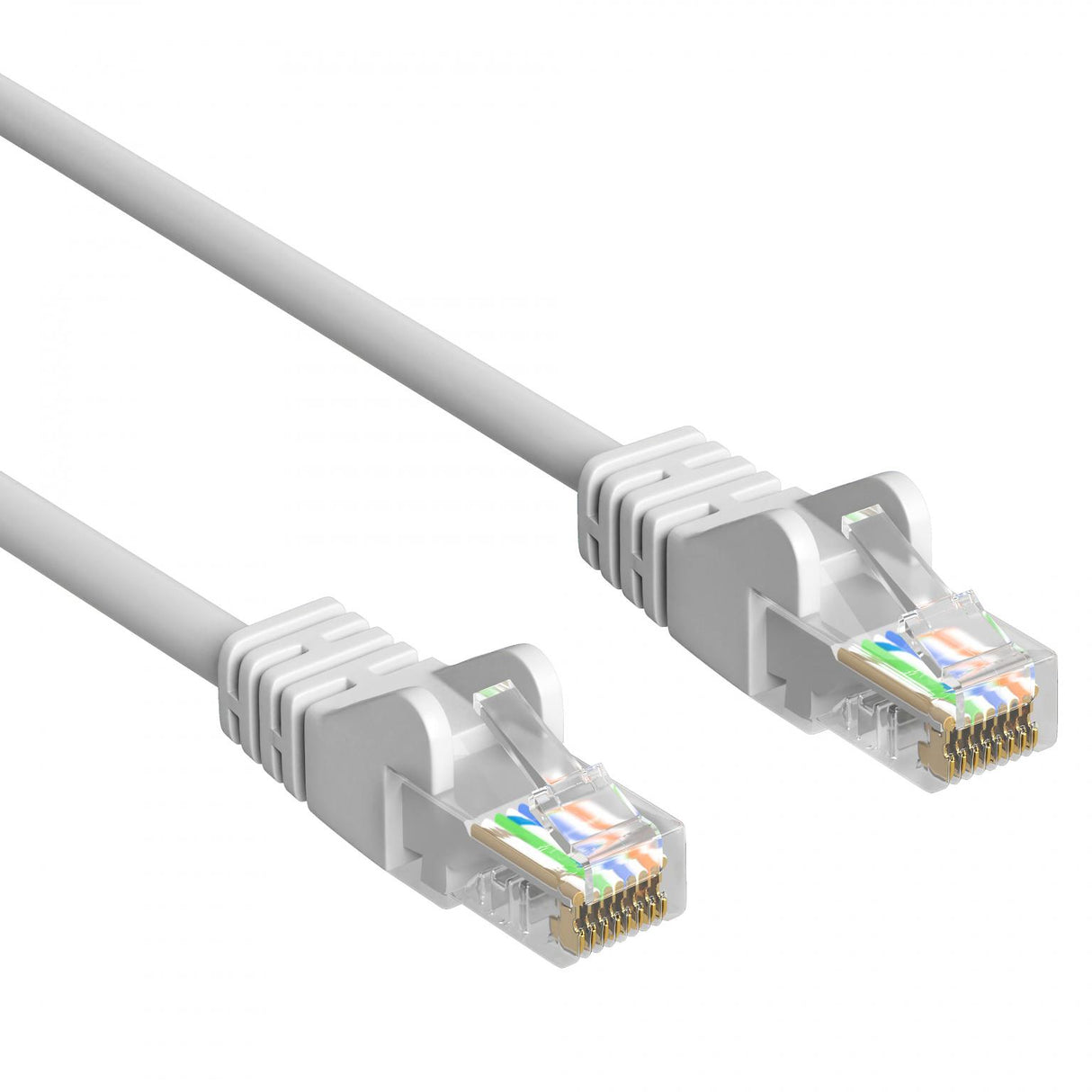

This U/UTP CAT5e network cable is an affordable and functional choice for standard network applications such as internet, IP telephony, and CCTV. The cable meets CAT5e specifications and supports transfer speeds of up to 1 Gbit/s at a frequency of 100 MHz, for a maximum cable length of 100 meters. This cable comes with a 5-year warranty.
The conductors of this cable consist of 28/7 CCA wire. This means that each conductor is made up of 28 thin wires, each 0.12 mm thick, twisted together into a single flexible bundle – equivalent in thickness to 24 AWG (American Wire Gauge). The material used is CCA (Copper Clad Aluminium): an aluminium core with a thin layer of copper. This type of conductor is lighter and cheaper than solid copper variants, and offers sufficient performance for basic network traffic.
Please note: due to the higher resistance of aluminium compared to copper, this cable is less suitable for Power over Ethernet (PoE), longer lengths, or installations where minimal signal distortion is required. For professional or critical applications, a 100% copper cable is recommended.
The outer jacket is made of flexible PVC, making the cable easy to handle during indoor installation. This cable is not halogen-free (not LSZH) and is therefore not suitable for public buildings or environments with elevated fire safety requirements.
Comparison of network cable categories:
CAT5e: 100 MHz – Up to 1 Gbit/s – 28/7 CCA or 24 AWG copper – Max. length 100 m at 1 Gbit/s – Suitable for home use.
CAT6: 250 MHz – Up to 1 Gbit/s (up to 10 Gbit/s at max. 55 m) – 23 AWG – Max. 100 m at 1 Gbit/s, max. 55 m at 10 Gbit/s – Better shielding.
CAT6a: 500 MHz – Up to 10 Gbit/s – 23 AWG – Max. 100 m at 10 Gbit/s – For professional use.
CAT7: 600 MHz – Up to 10 Gbit/s – 23 AWG – Max. 100 m – S/FTP shielding, ideal for interference-sensitive installations.
CAT8: 2000 MHz – Up to 40 Gbit/s – 22 AWG – Max. 30 m – For data centers and servers with extremely high bandwidth.
